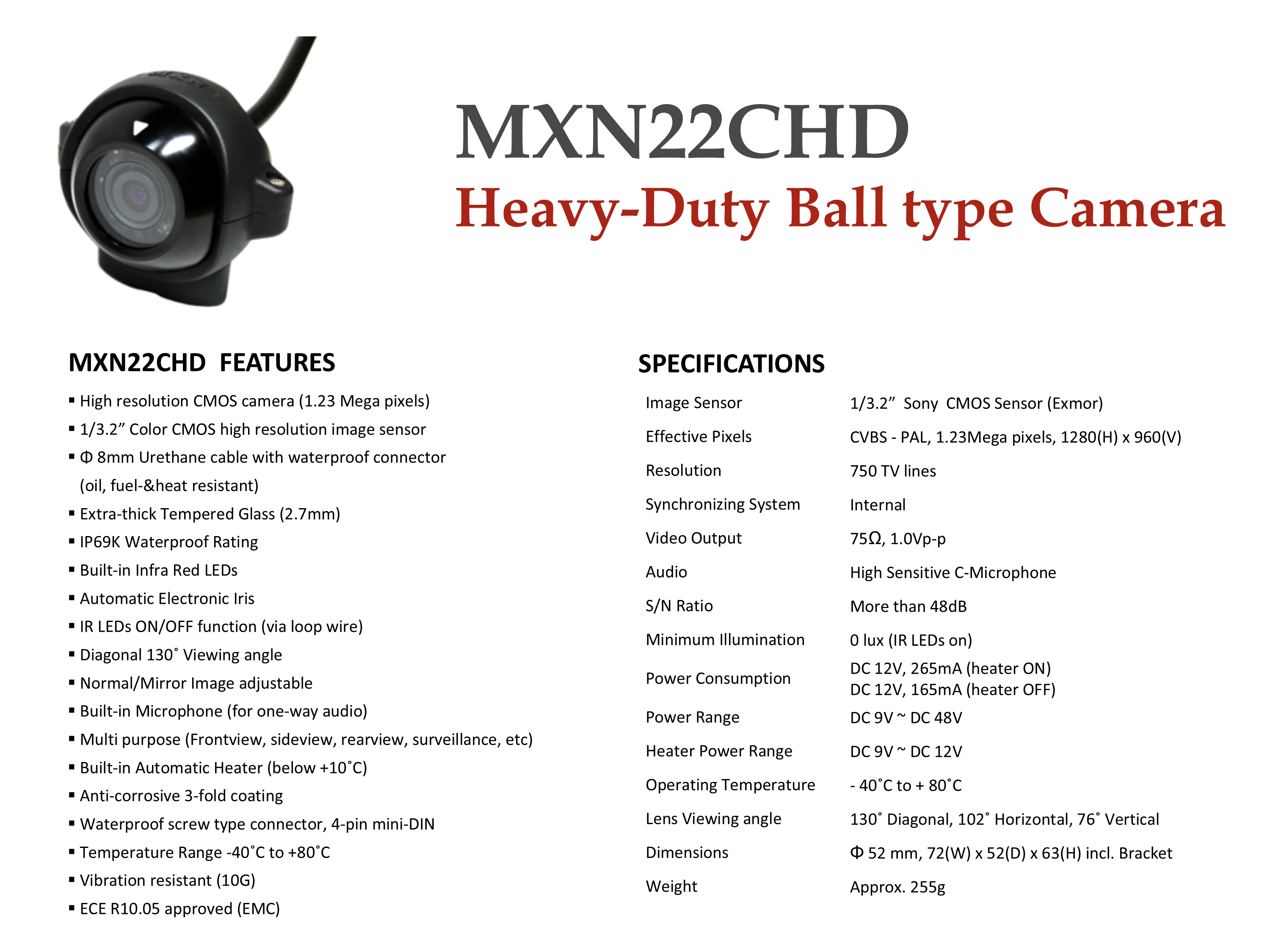

MXN22CHD
FEATURES
MXN22C Heavy Duty version, Upgraded Durability

High resolution CMOS camera (1.23 Mega pixels)
1/3.2” Color CMOS high resolution image sensor
*Φ 8mm Urethane cable with waterproof connector*
(oil, fuel-&heat resistant)
*Extra-thick Tempered Glass (2.7mm)*
IP69K Waterproof Rating
Built-in Infra Red LEDs
Automatic Electronic Iris
IR LEDs ON/OFF function (via loop wire)
Diagonal 130˚ Viewing angle
Normal/Mirror Image adjustable
Built-in Microphone (for one-way audio)
Multi purpose (Frontview, sideview, rearview, surveillance, etc)
Built-in Automatic Heater (below +10˚C)
Anti-corrosive 3-fold coating
Waterproof screw type connector, 4-pin mini-DIN
Temperature Range -40˚C to +80˚C
*Vibration resistant (10G)*
ECE R10.05 approved (EMC)
