MXN81C Series
FEATURES
Standart Rear View Camera

[MXN81C/MXN81CN/MXN81C-TVI/MXN81C-ADR]

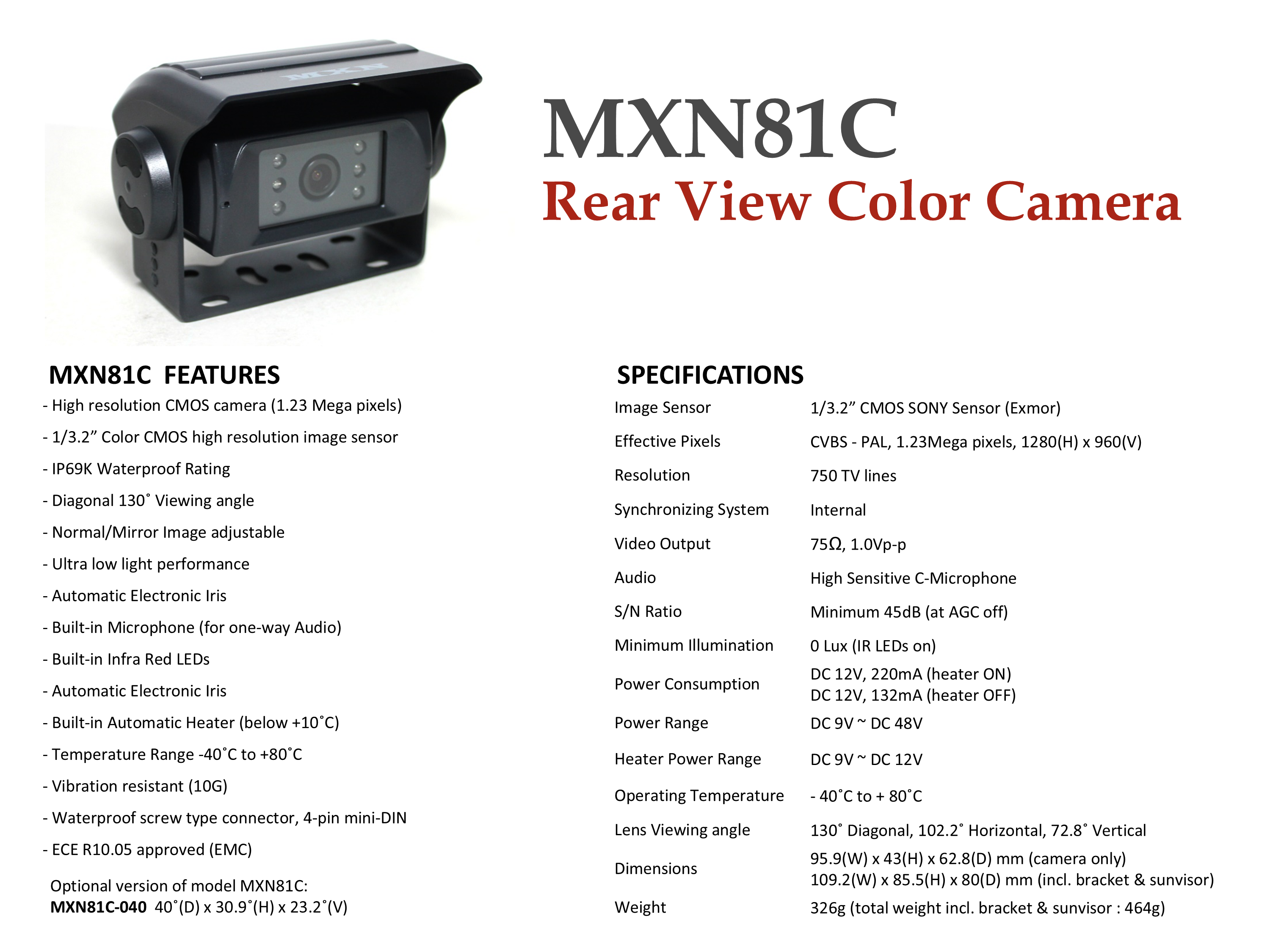

MXN81C: CBVS-PAL

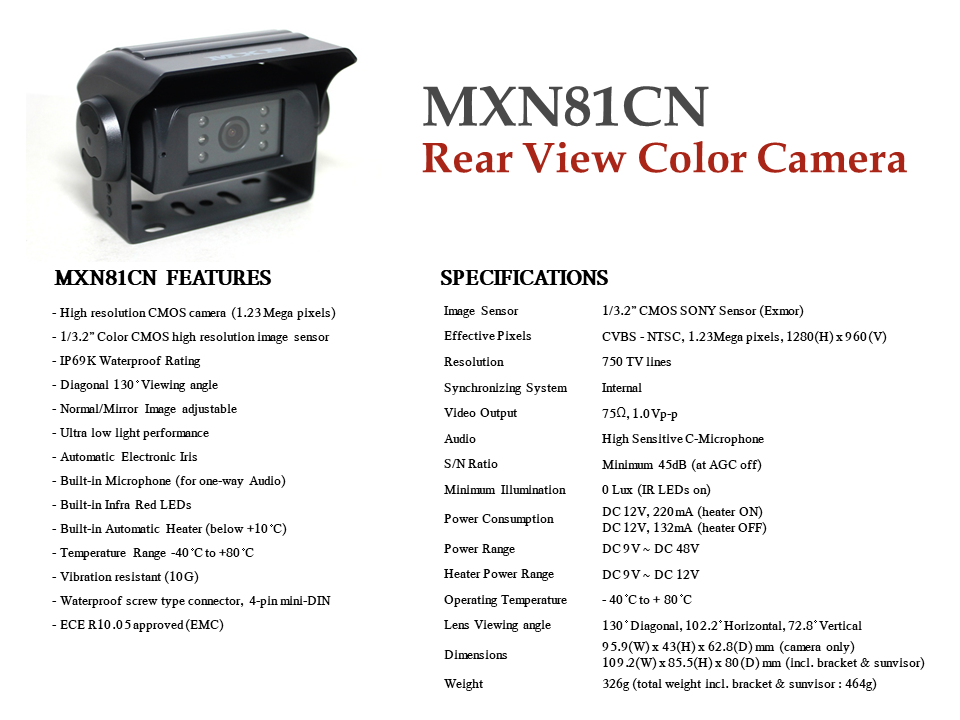

MXN81CN: CVBS-NTSC
MXN81C-TVI: TVI(Full HD)
MXN81C-ADR: MXN81C + ADR Cable

Common features(MXN81C/MXN81CN/MXN81C-TVI/MXN81C-ADR)

• IP69K Waterproof Rating
• Normal/Mirror Image switching
• IR LED ON/OFF function (via loop wire)
• Normal/Mirror Image adjustable
• Built-in Microphone
• Built-in IR LED’s
• Built-in Automatic Heater (below +10˚C)
• Temp. -40˚C ~ 80˚C
• Waterproof screw type connector (IP67), 4-pin mini-DIN

For MXN81C/MXN81CN/MXN81C-ADR

• Best picture quality (in combination with Digital LCD monitor)
• High resolution CMOS camera (1.23Mega pixels)
• 1/3.2” Color CMOS high resolution image sensor
• Diagonal 130˚ Viewing
• Ultra low light performance
• Automatic Electronic Iris
• Vibration resistant
• E-mark

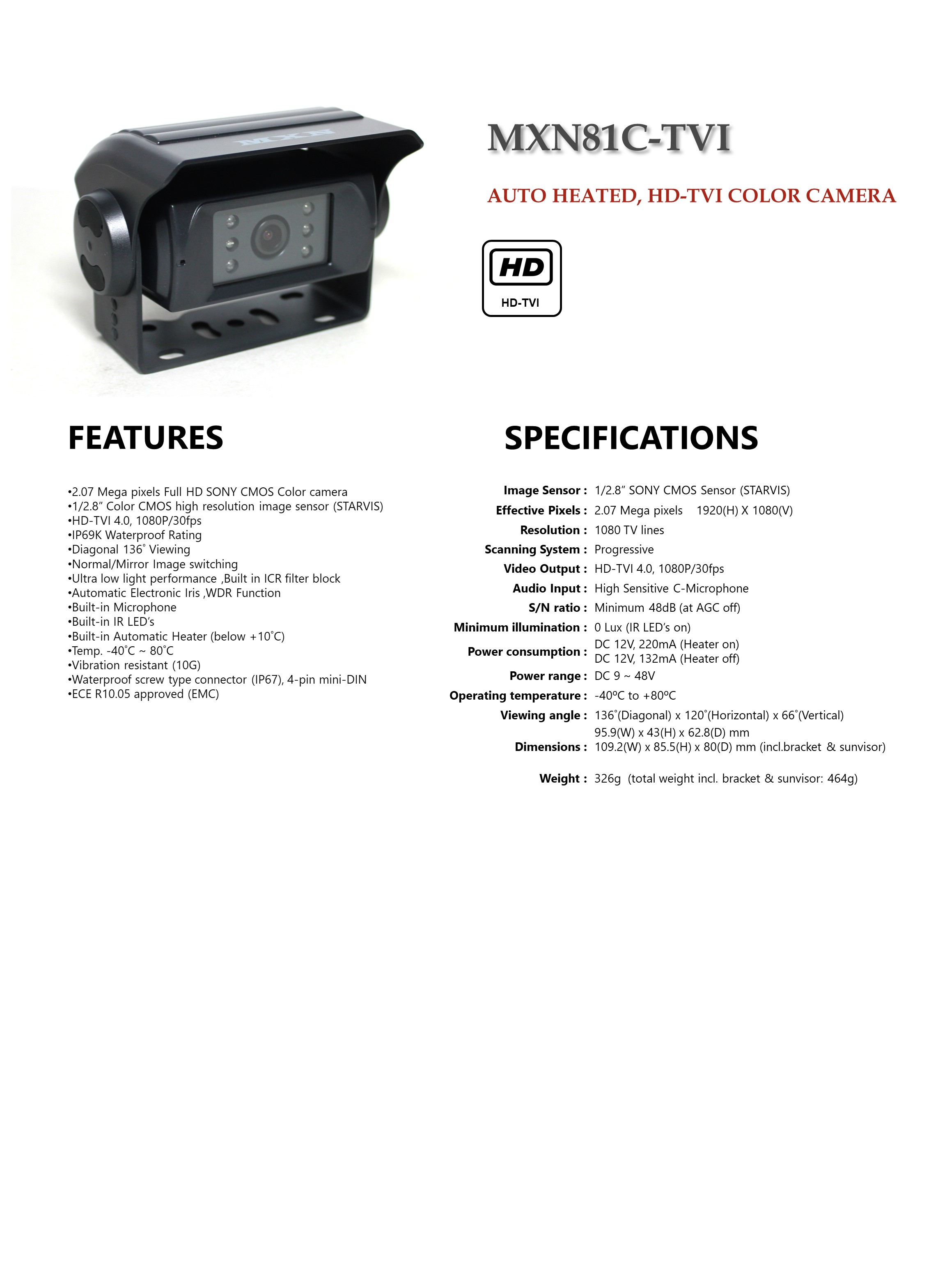

For MXN81C-TVI

• 2.07 Mega pixels Full HD SONY CMOS Color camera
• 1/2.8” Color CMOS high resolution image sensor (STARVIS)
• HD-TVI 4.0, 1080P/30fps
• Diagonal 136˚ Viewing
• Ultra low light performance ,Built in ICR filter block
• Automatic Electronic Iris ,WDR Function
• Vibration resistant (10G)
• ECE R10.05 approved (EMC)
COMPATIBLE PRODUCTS
Manual Leaflet
DESCRIPTION


MXN81C-Silver
