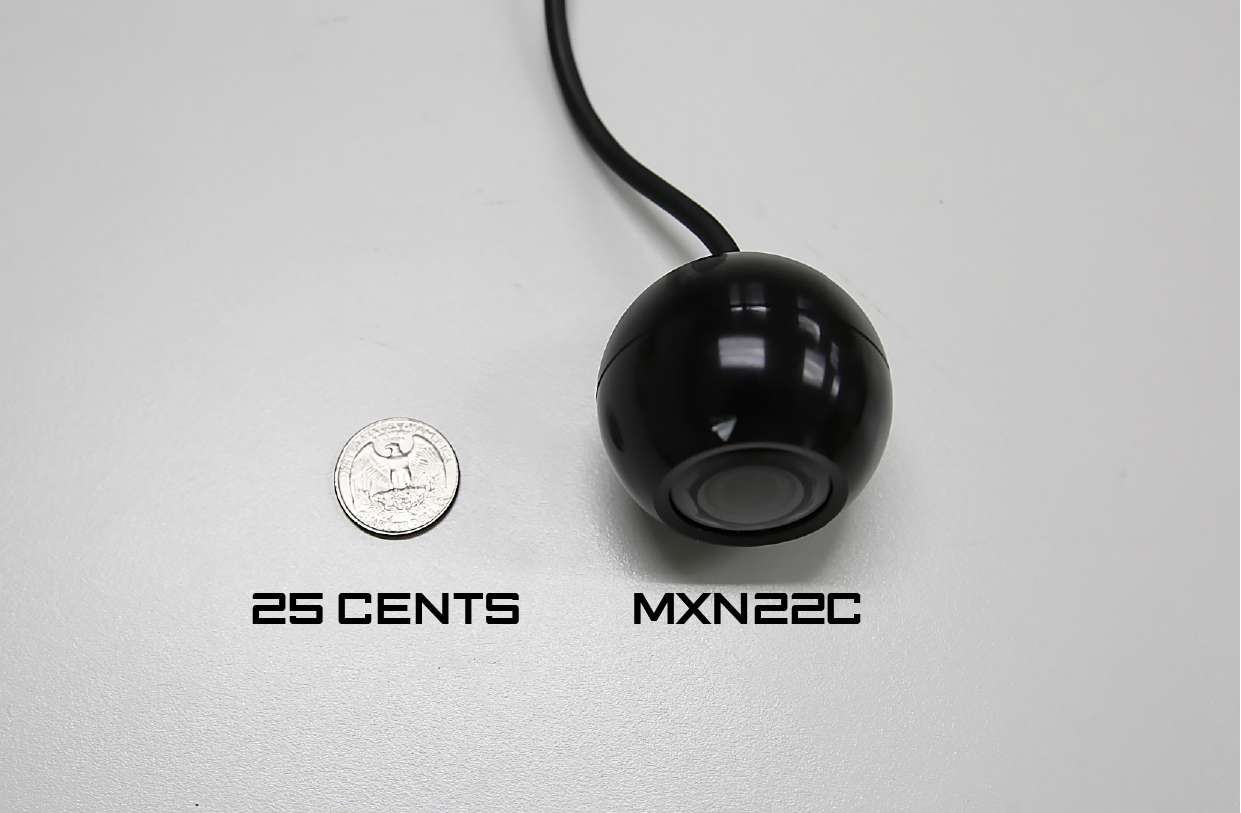

Compact ball camera

[MXN22C/MXN22CW/MXN22CN/MXN22C-TVI]

MXN22C: CBVS-PAL
MXN22CW: CBVS-PAL
MXN22CN: CVBS-NTSC
MXN22C-TVI: TVI(Full HD)

Common features(MXN22C/MXN22CW/MXN22CN/MXN22C-TVI)

•IP69K Waterproof Rating
•Built-in Infra Red LEDs
•Normal/Mirror Image adjustable
•Built-in Microphone (for one-way audio)
•Multi purpose (Frontview, Sideview, Rearview, Surveillance, etc)
•Built-in Automatic Heater (below +10˚C)
•Anti-corrosive 3-fold coating
•Temp. -40˚C ~ +80˚C
•Vibration resistant (10G)

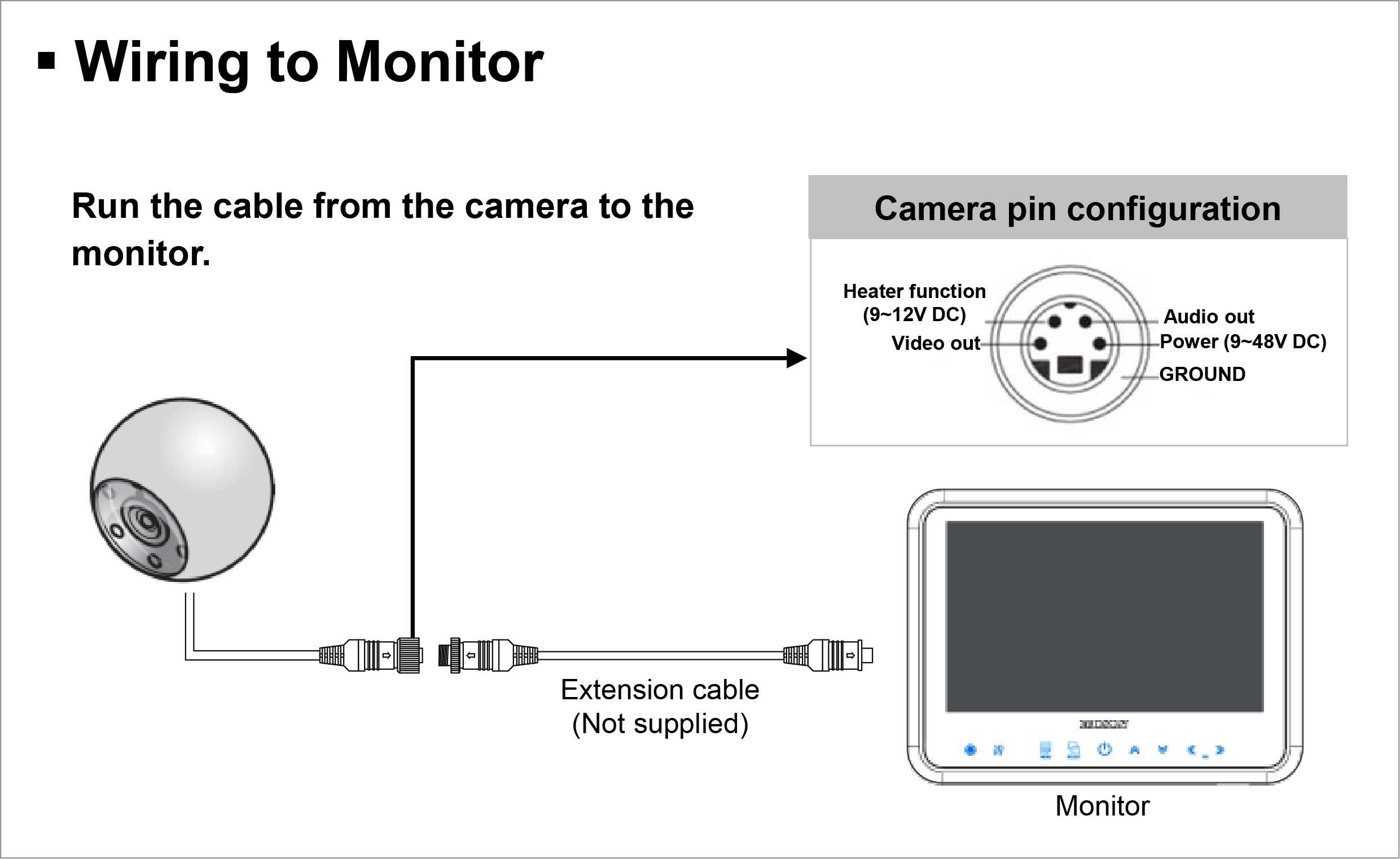

•Waterproof screw type connector, 4-pin mini-DIN
•ECE R10.05 approved (EMC)

For MXN22C
•CVBS-PAL
•Diagonal (20˚/40˚/78˚/130˚) Viewing angle
•High resolution CMOS camera (1.23 Mega pixels)
•1/3.2” Color CMOS high resolution image sensor
•Automatic Electronic Iris

For MXN22CW
•CVBS-PAL
•Diagonal 160˚ Wide Viewing angle
•High resolution CMOS camera (1.23 Mega pixels)
•1/3.2” Color CMOS high resolution image sensor
•Automatic Electronic Iris
•R46 and 2003/97/EC approved for indirect vision
•in combination with some specific MXN monitor models only

For MXN22CN
•CVBS-NTSC
•Diagonal 130˚ Viewing angle
•High resolution CMOS camera (1.23 Mega pixels)
•1/3.2” Color CMOS high resolution image sensor
•Automatic Electronic Iris


For MXN22C-TVI
•HD-TVI 4.0, 1080P/30fps
•Diagonal (20˚/40˚/78˚/130/160˚) viewing angle
•2.07 Mega pixels Full HD SONY CMOS Color camera
•1/2.8” Color CMOS high resolution image sensor (STARVIS)
