MXN44C Series
FEATURES
CMOS Mini Ball camera

[MXN44C-TVI/MXN44C-MOD]

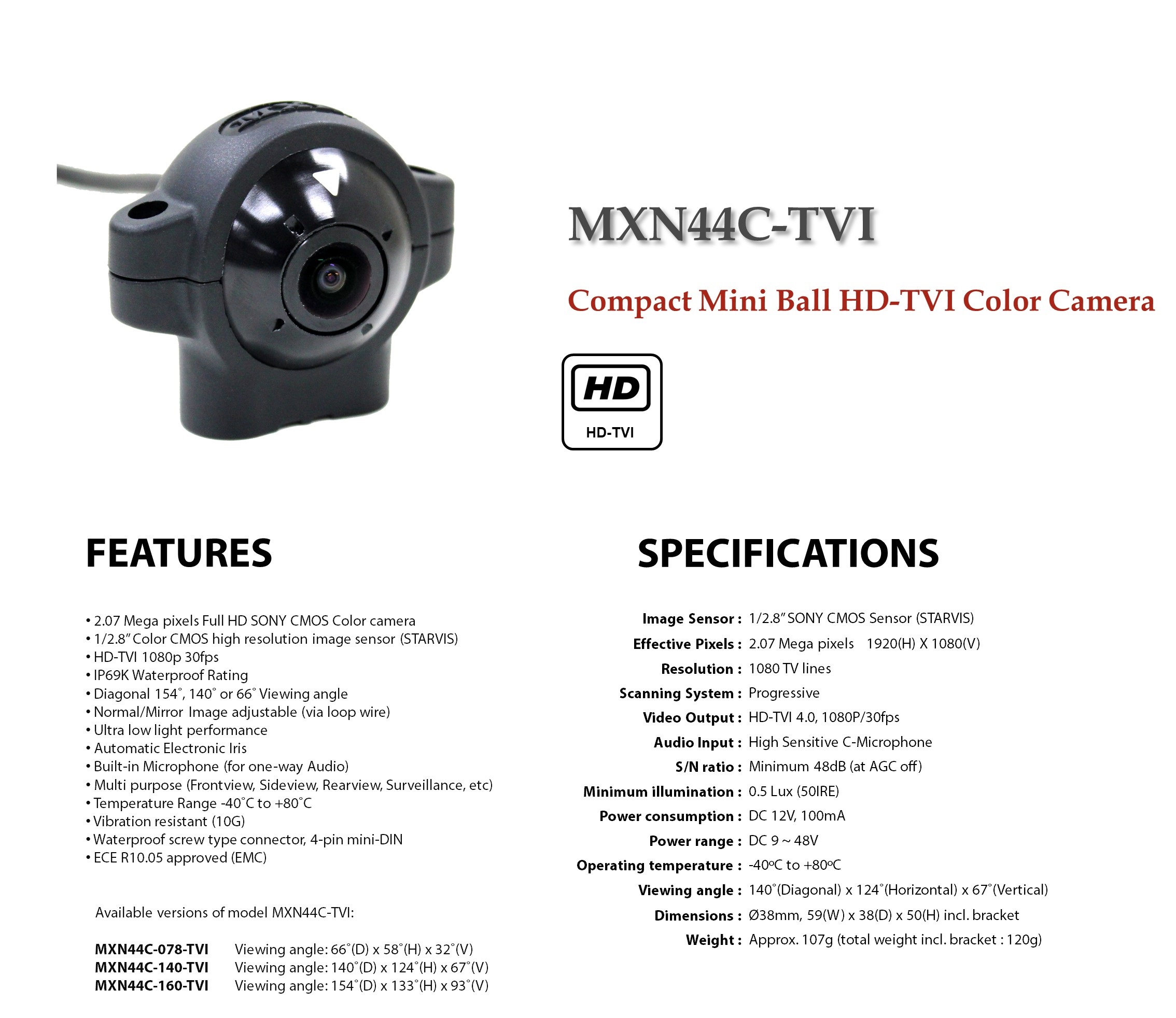

MXN44C-TVI: TVI(Full HD)

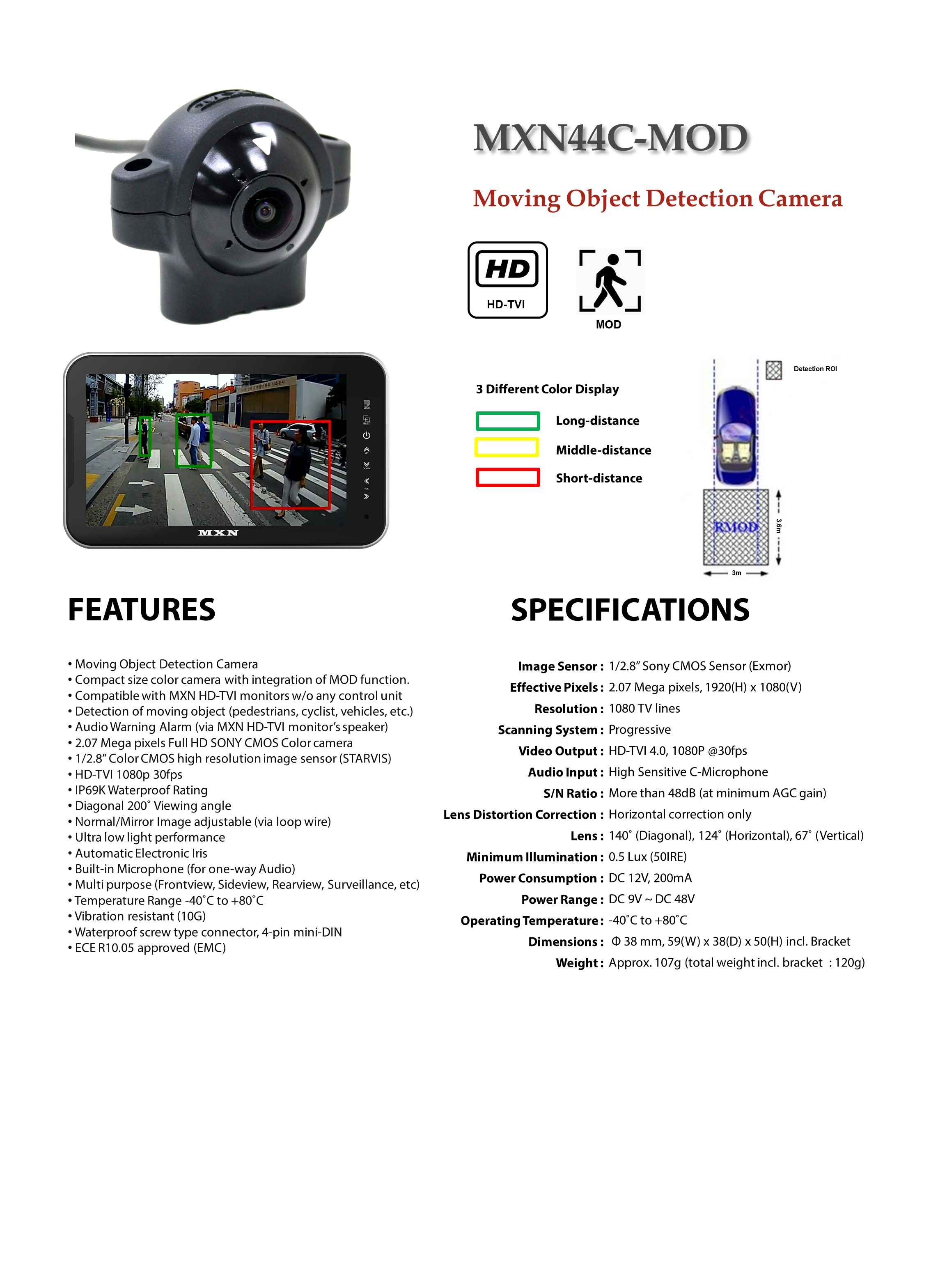

MXN44C-MOD: TVI(Full HD) *Moving Object Detection Camera*

Common features(MXN44C-TVI/MXN44C-MOD)

•2.07 Mega pixels Full HD SONY CMOS Color camera
•1/2.8” Color CMOS high resolution image sensor (STARVIS)
•HD-TVI 1080p 30fps
•IP69K Waterproof Rating
•Normal/Mirror Image adjustable (via loop wire)
•Ultra low light performance
•Automatic Electronic Iris
•Built-in Microphone (for one-way Audio)
•Multi purpose (Frontview, Sideview, Rearview, Surveillance, etc)
•Temperature Range -40˚C to +80˚C
•Vibration resistant (10G)
•Waterproof screw type connector, 4-pin mini-DIN
•ECE R10.05 approved (EMC)

For MXN44C-TVI
•Diagonal 154˚, 140˚ or 66˚ Viewing angle

For MXN44C-MOD
•Diagonal 200˚ Viewing angle
• *Moving Object Detection Camera*
•Compact size color camera with integration of MOD function.
•Compatible with MXN HD-TVI monitors w/o any control unit
• *Detection of moving object (pedestrians, cyclist, vehicles, etc.)*
• *Audio Warning Alarm (via MXN HD-TVI monitor’s speaker)*
COMPATIBLE PRODUCTS
Manual Leaflet
DESCRIPTION



Mini Ball Camera 1minute Assembly Video (MXN44C)

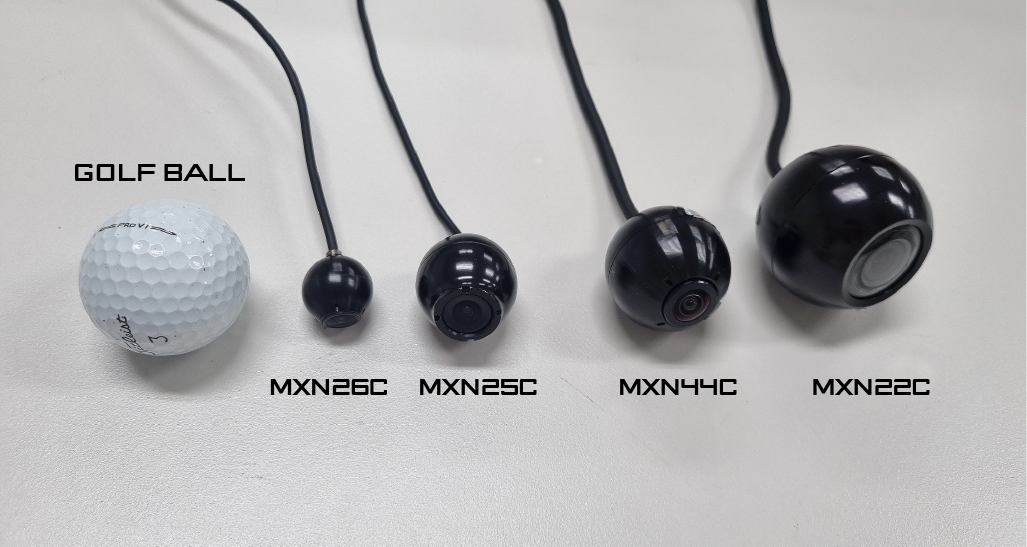

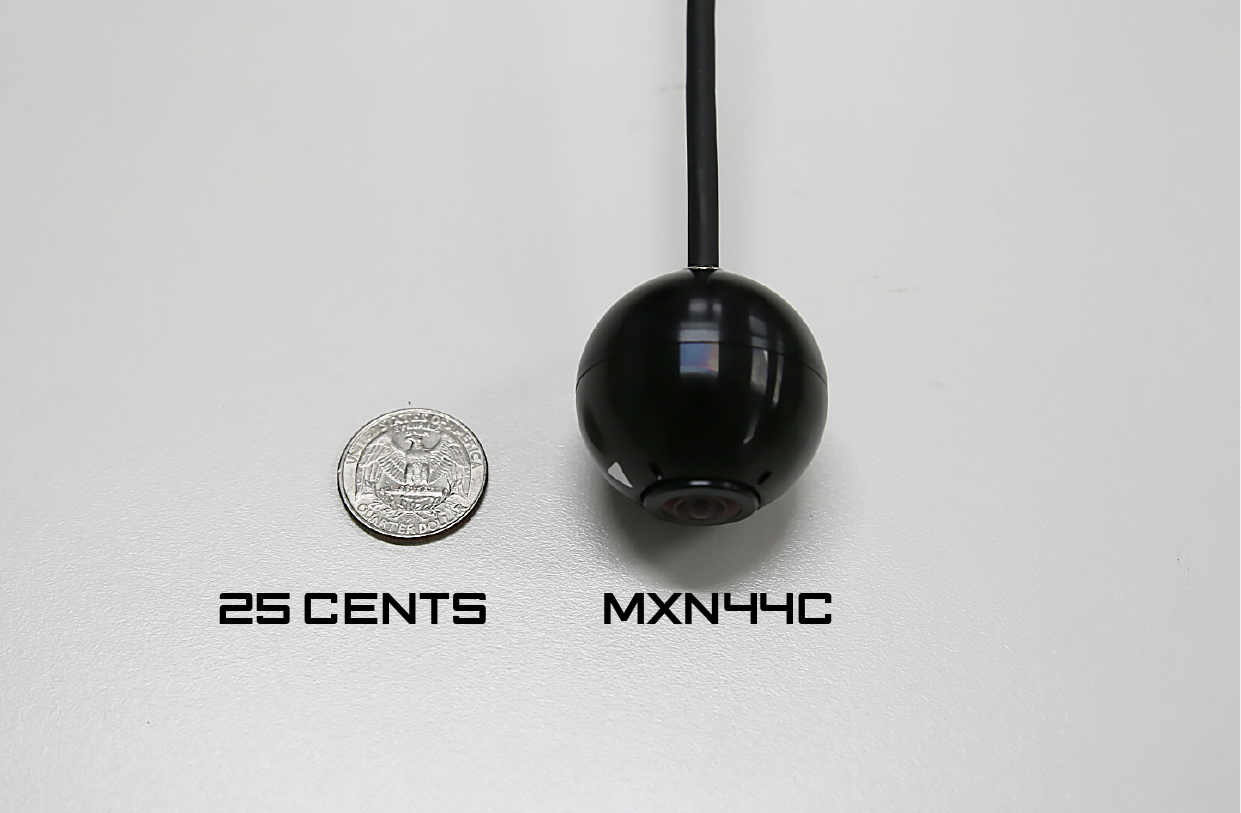

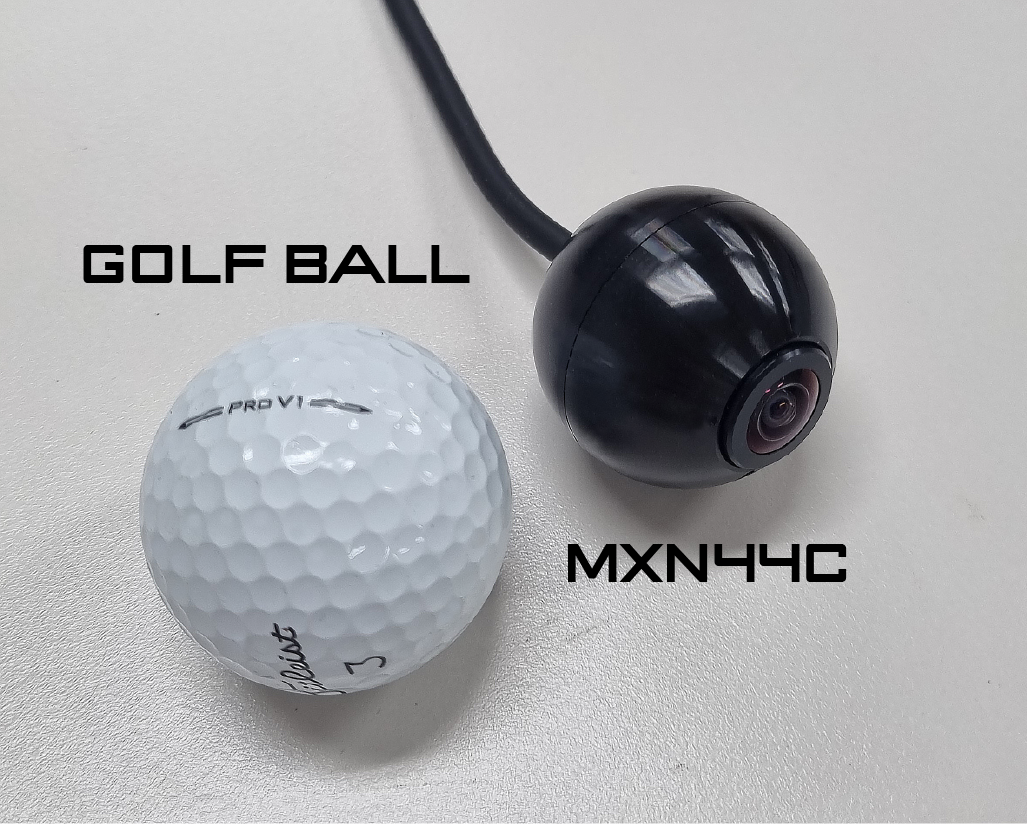

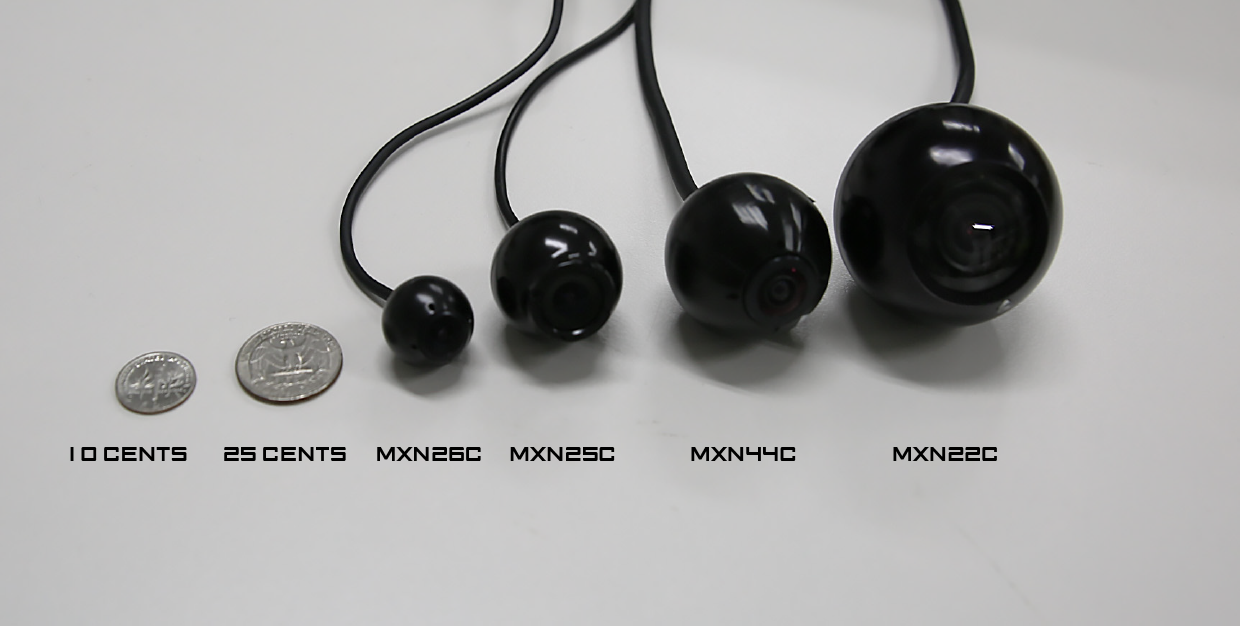

Camera size comparison
