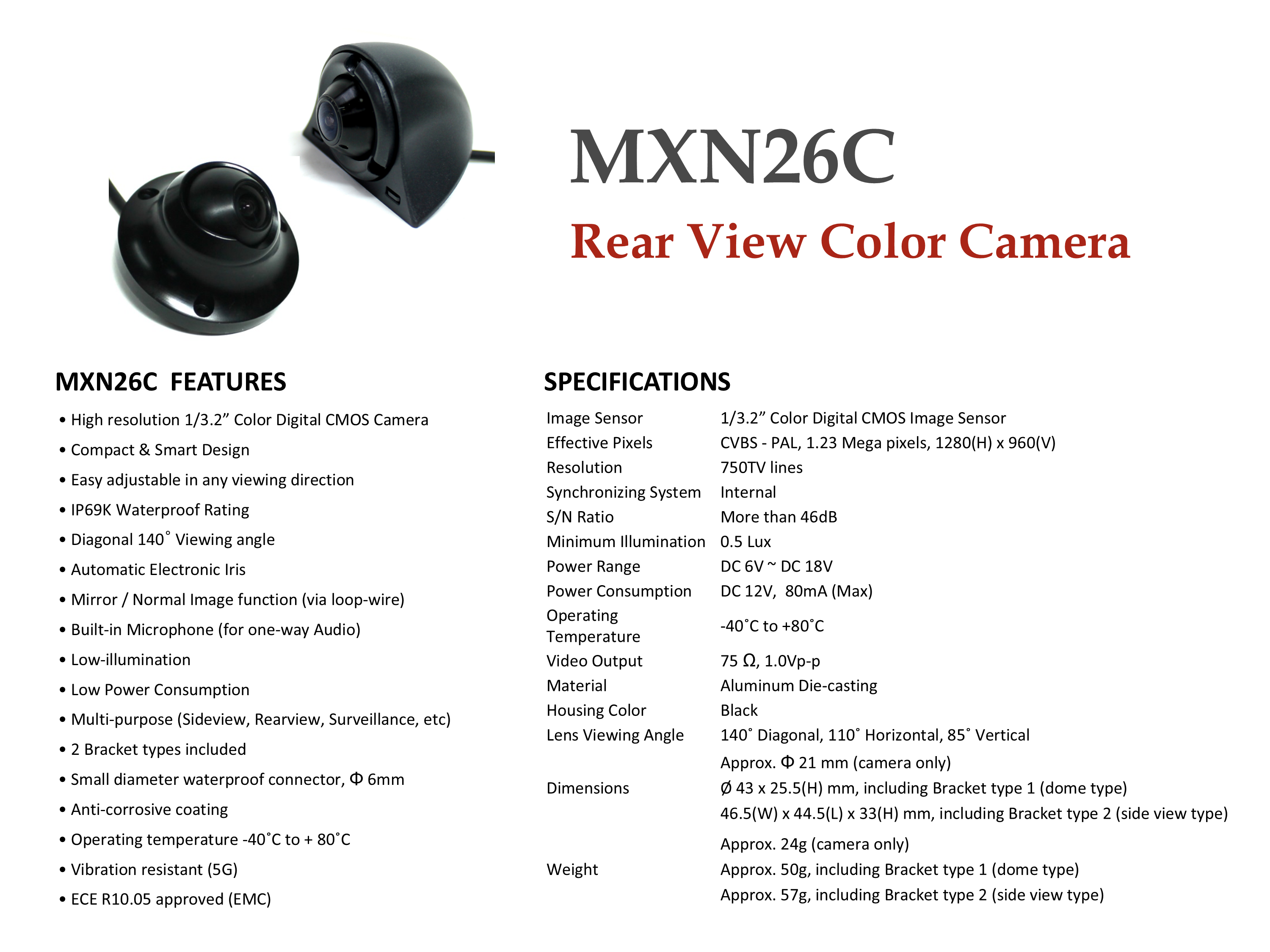

MXN26C Series
FEATURES
Mini Camera(Easy adjustable in any viewing direction)

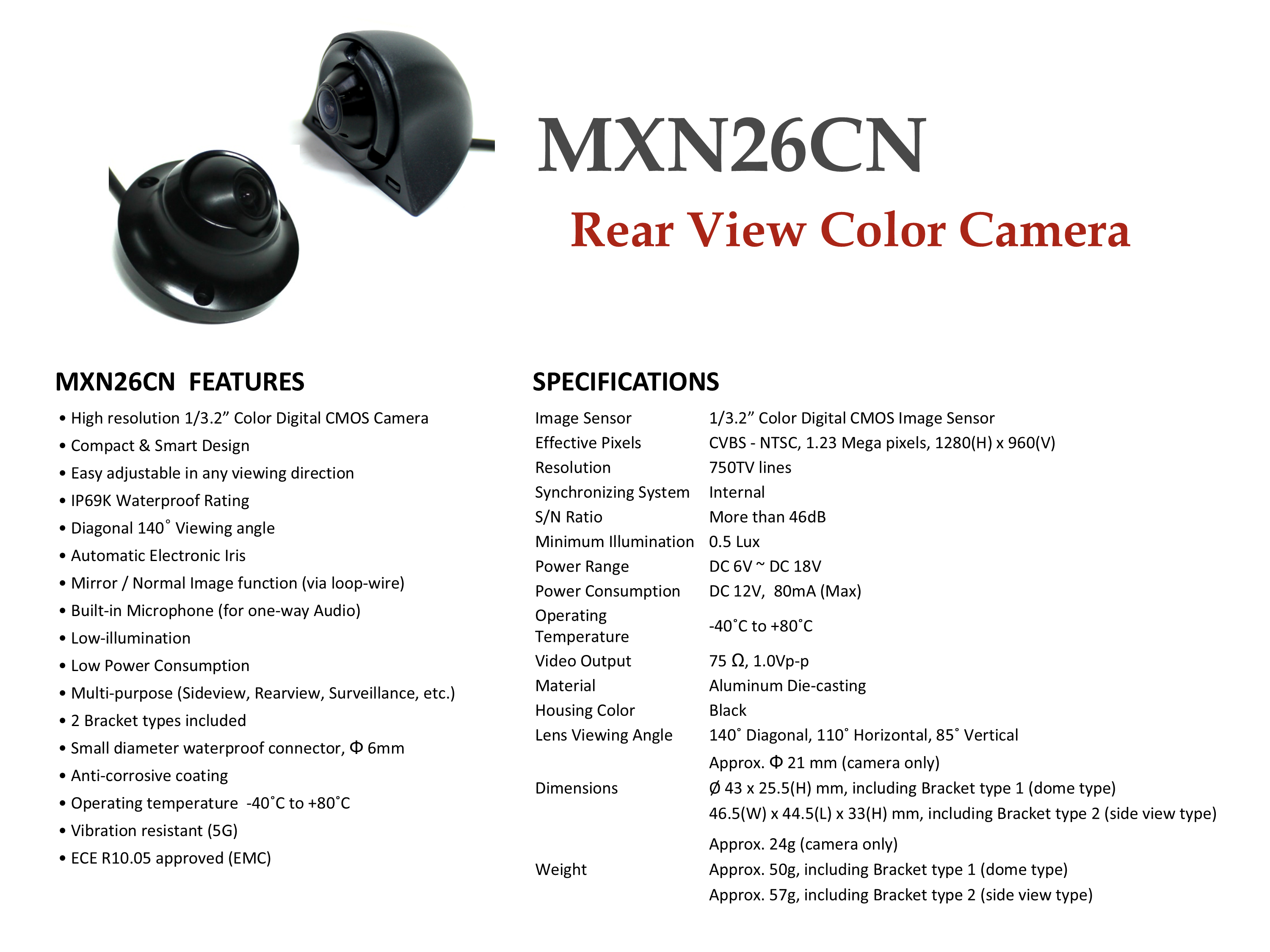

[MXN26C/MXN26CN]

MXN26C: CBVS-PAL
MXN26CN: CVBS-NTSC

Common features(MXN26C/MXN26CN)

High resolution 1/3.2” Color Digital CMOS Camera
Compact & Smart Design
Easy adjustable in any viewing direction
IP69K Waterproof Rating
Diagonal 140° Viewing angle
Automatic Electronic Iris
Mirror / Normal Image function (via loop-wire)
Built-in Microphone (for one-way Audio)
Low-illumination
Low Power Consumption
Multi-purpose (Sideview, Rearview, Surveillance, etc)

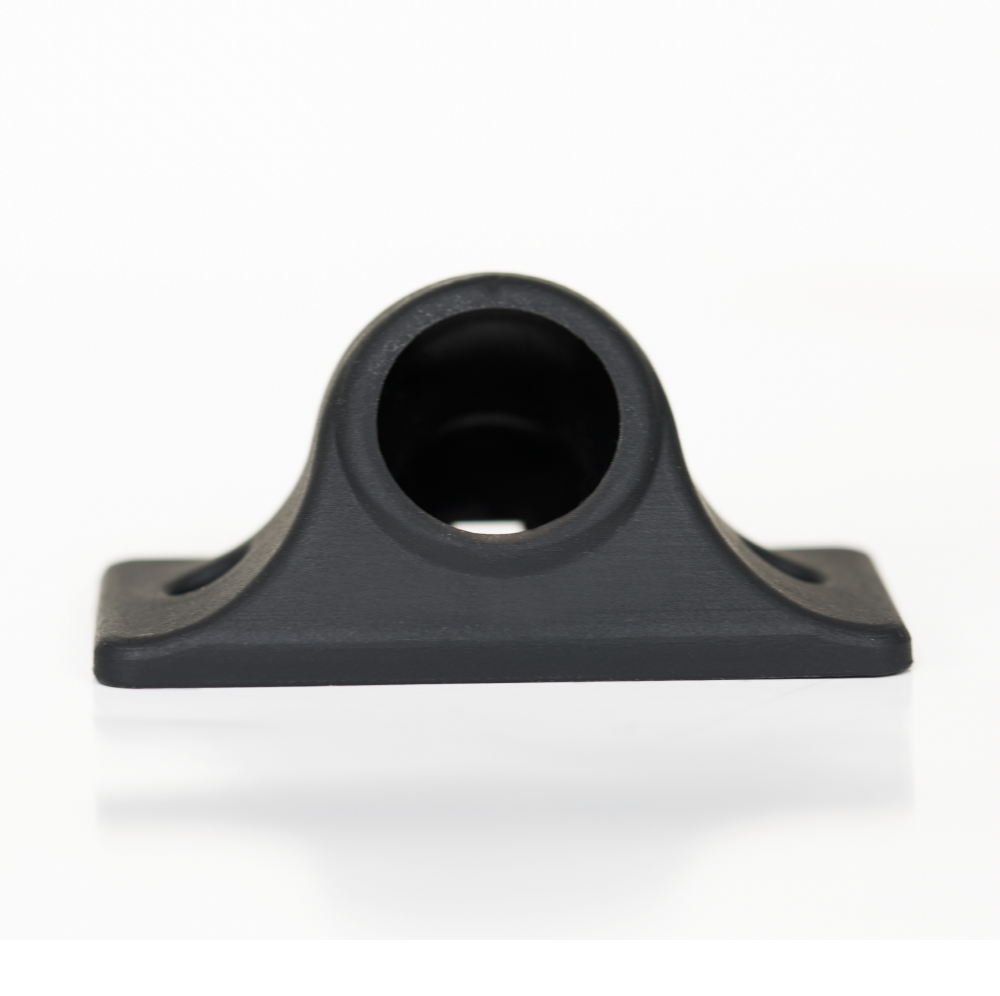

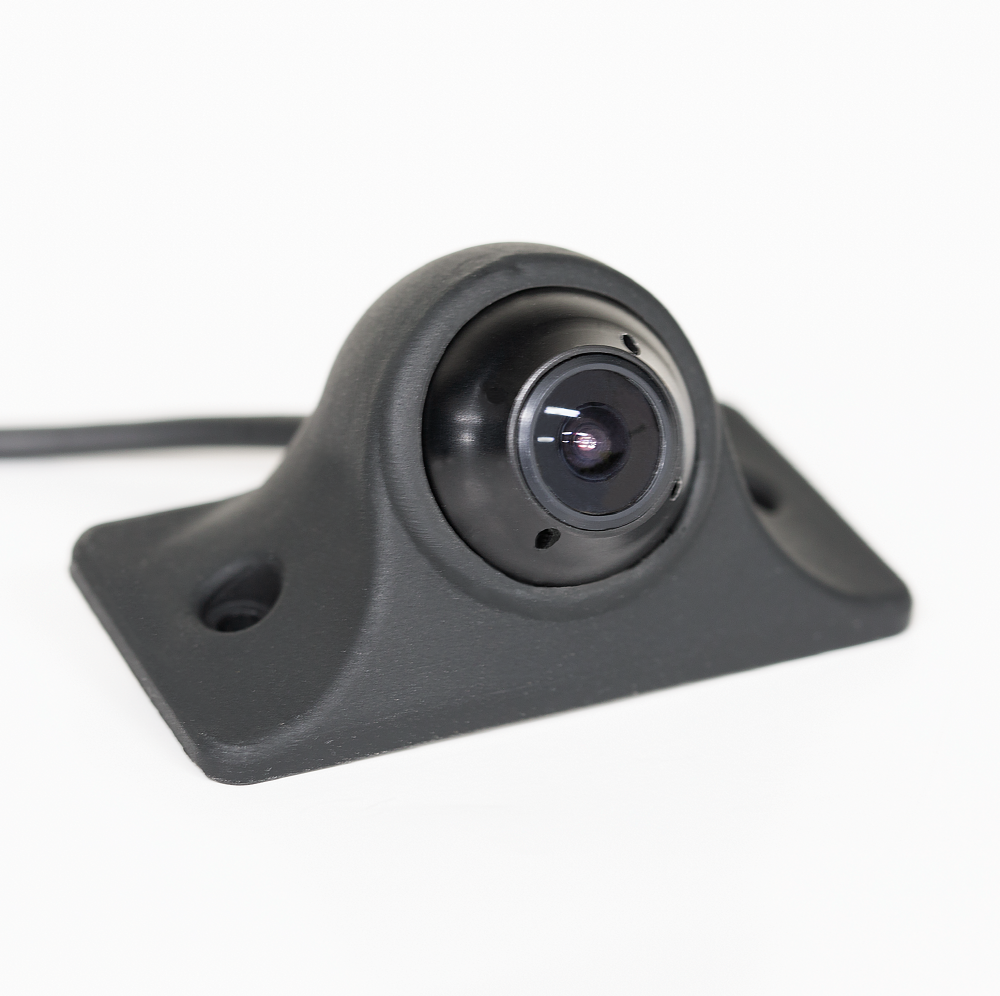

2 Bracket types included
Small diameter waterproof connector, Φ 6mm
Anti-corrosive coating
Operating temperature -40˚C to + 80˚C
Vibration resistant (5G)
ECE R10.05 approved (EMC)
COMPATIBLE PRODUCTS
Manual Leaflet
DESCRIPTION


Micro Ball Camera 1minute Assembly Video (MXN26C) - 1



Micro Ball Camera 1minute Assembly Video (MXN26C) - 2

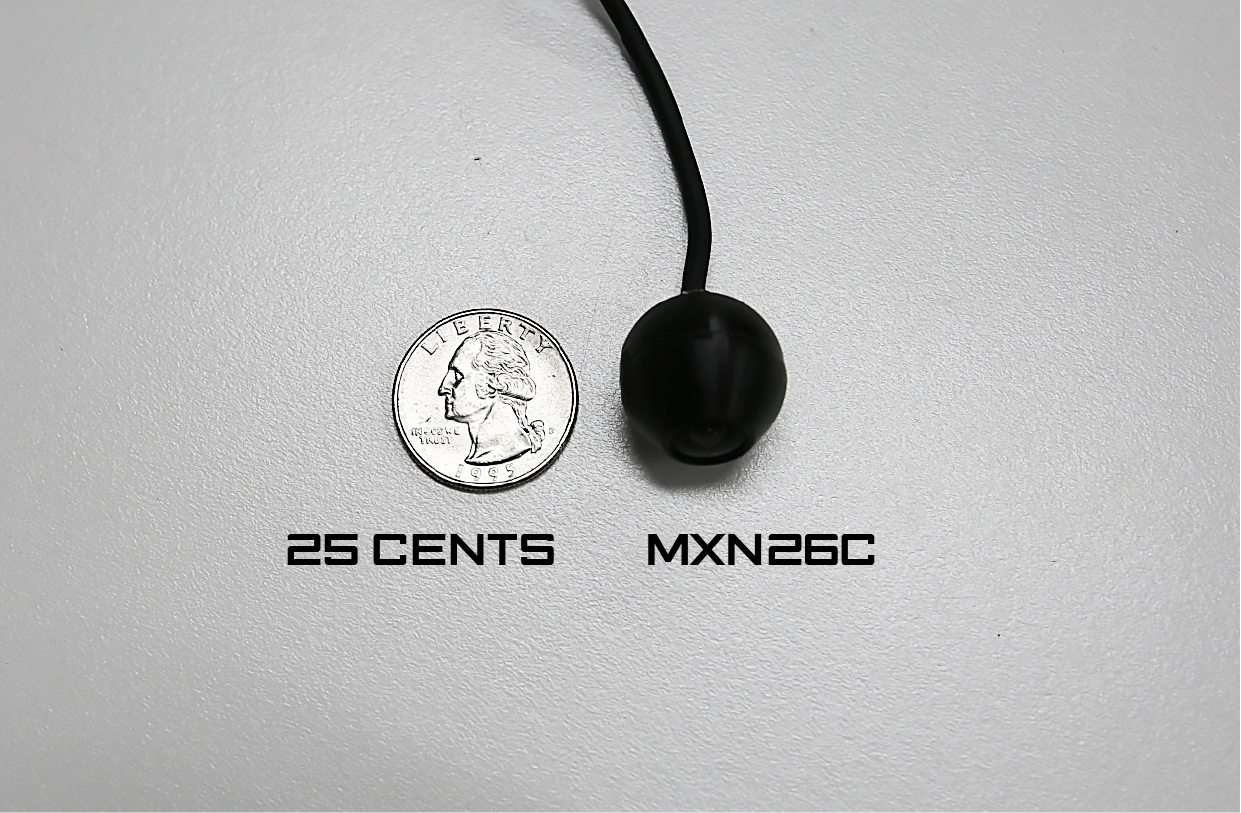

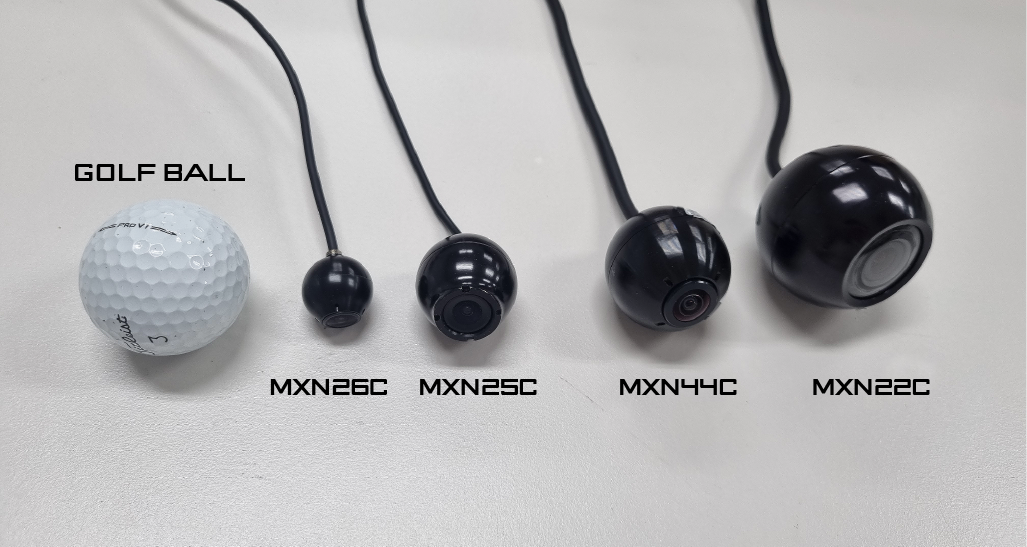

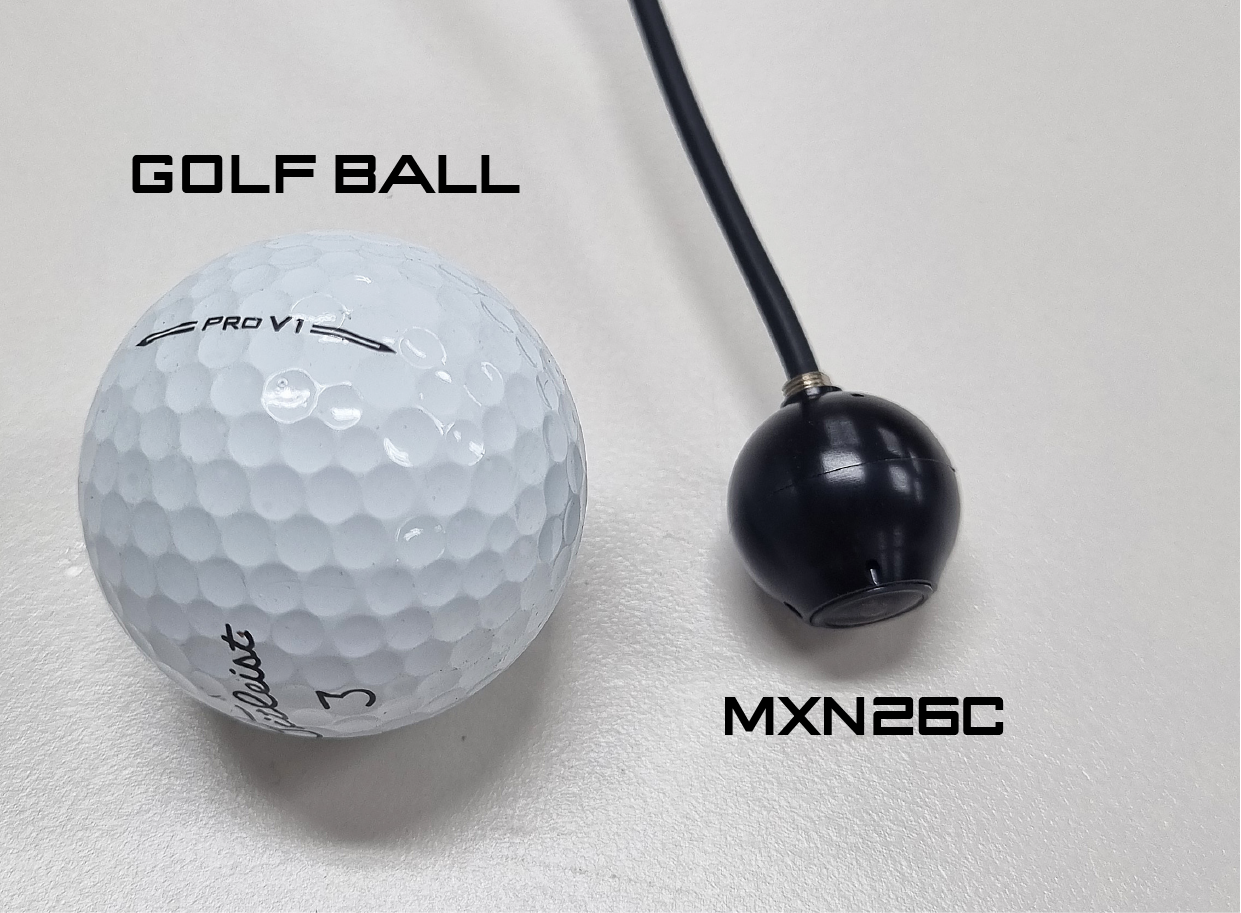

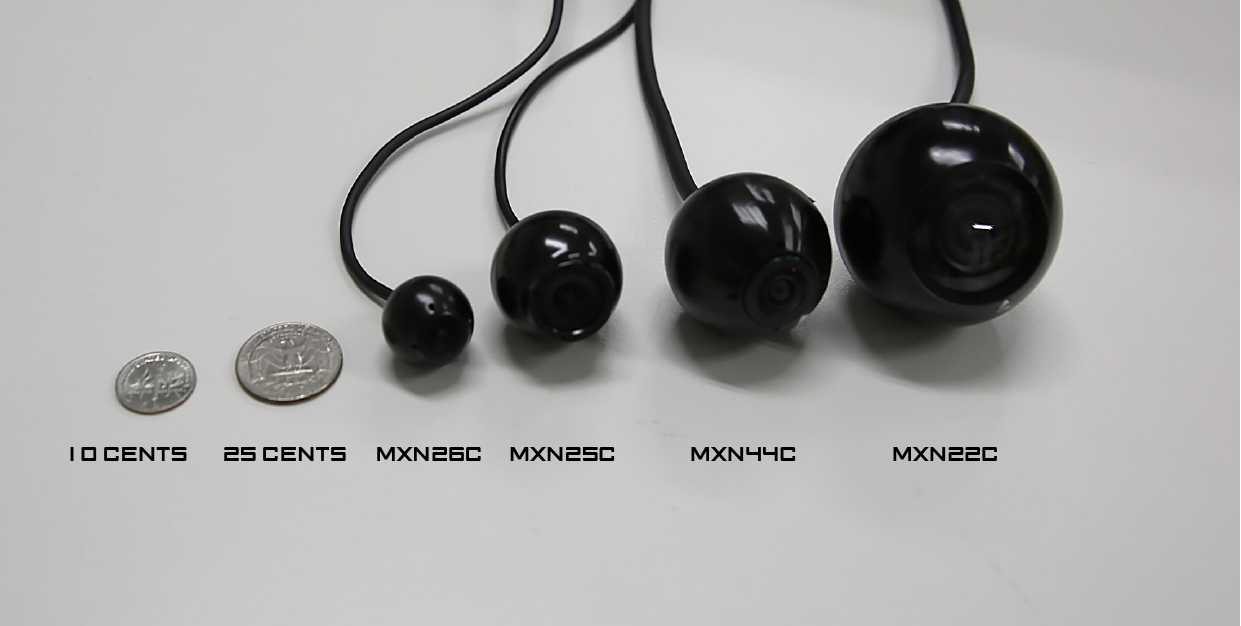

Camera size comparison
