MXN80C Series
FEATURES
Auto Shutter Camera

[MXN80C/MXN80CN/MXN80C-TVI]

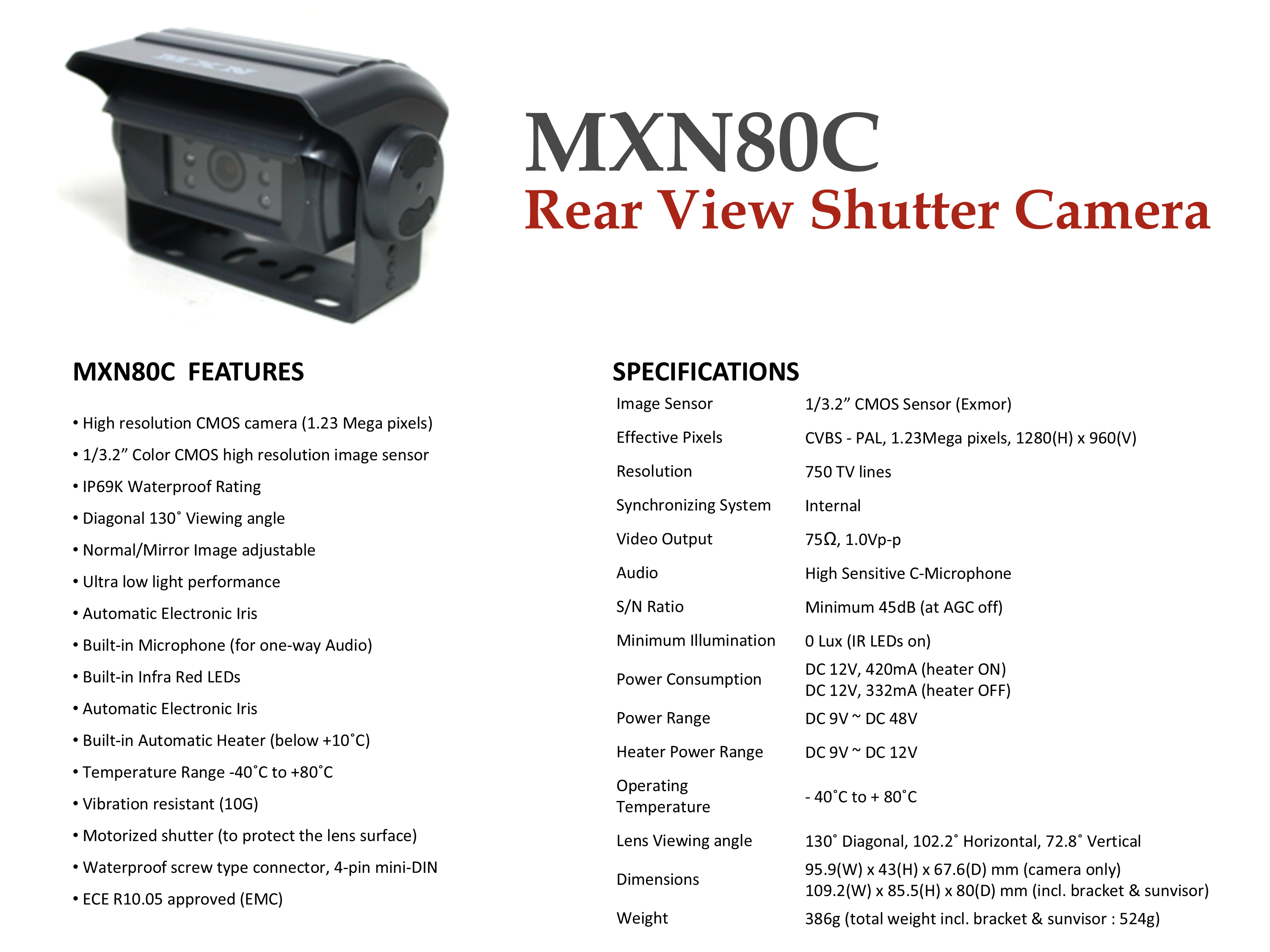

MXN80C: CBVS-PAL

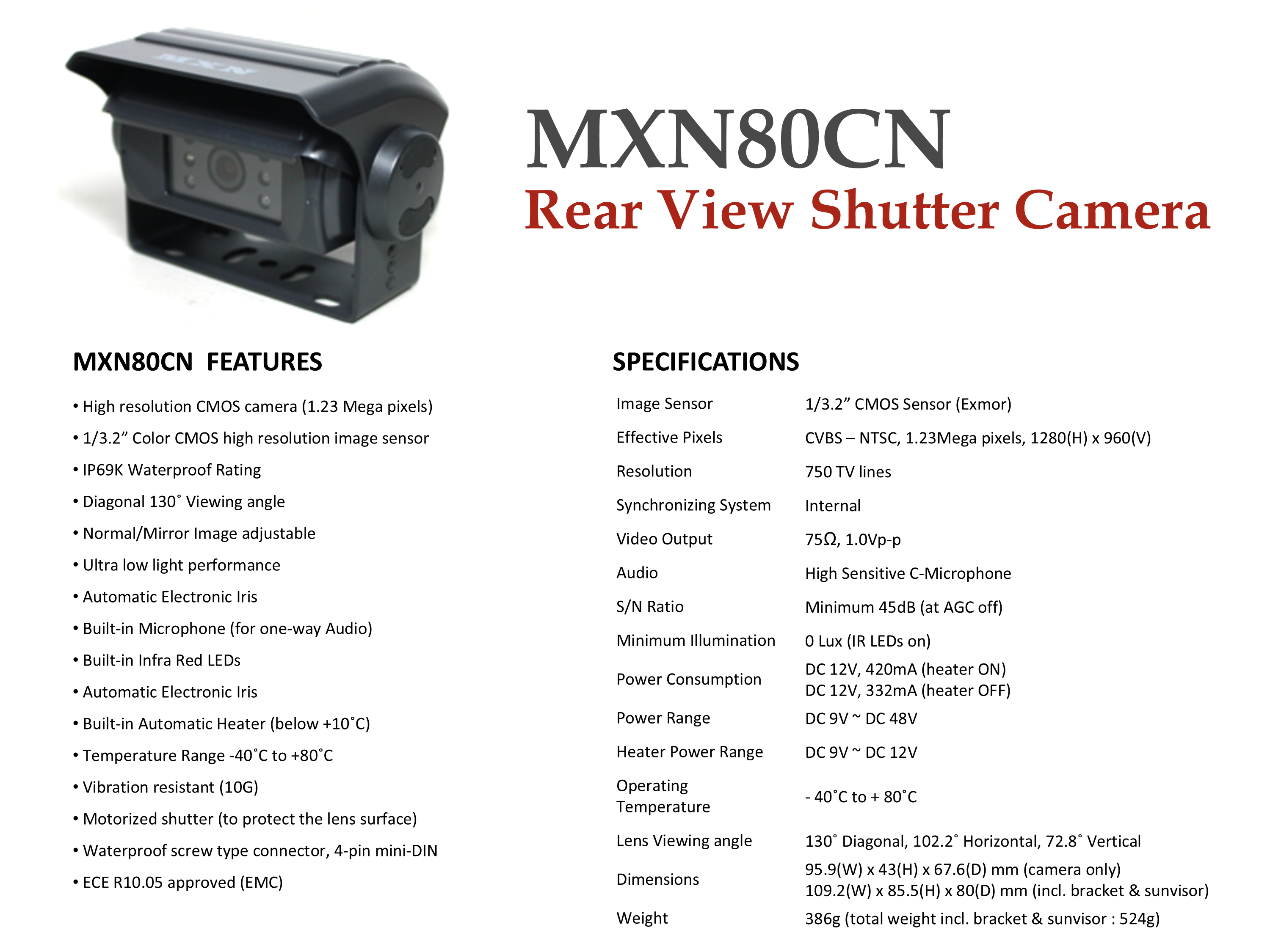

MXN80CN: CVBS-NTSC
MXN80C-TVI: TVI(Full HD)

Common features(MXN80C/MXN80CN/MXN80C-TVI)

IP69K Waterproof Rating
Normal/Mirror Image switching
Ultra low light performance ,Built in ICR filter block
Automatic Electronic Iris ,WDR Function
Built-in Microphone
Built in IR LED’s
Built in Automatic Heater (below +10˚C)
Temp. -40˚C ~ 80˚C
Vibration resistant (10G)
Auto shutter heating camera
Motorized shutter (to protect the lens surface)
Waterproof screw type connector (IP67), 4 pin mini DIN

For MXN80C/MXN80CN

Best picture quality (in combination with Digital LCD monitor)
High resolution CMOS camera (1.23Mega pixels)
1/3.2” Color CMOS
Diagonal 130˚ Viewing

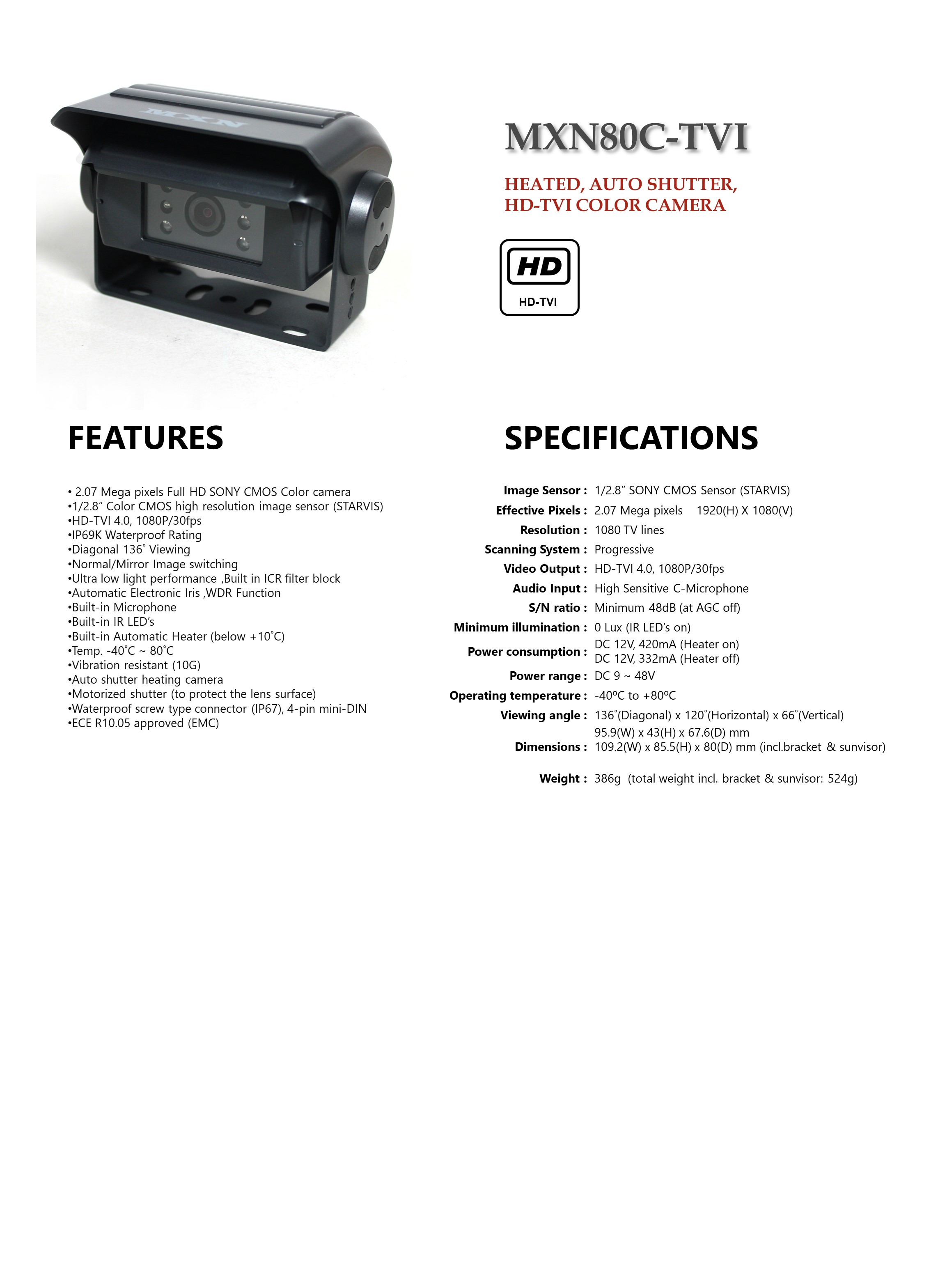

For MXN80C-TVI

2.07 Mega pixels Full HD SONY CMOS Color camera
1/2.8” Color CMOS high resolution image sensor (STARVIS)
HD-TVI 4.0, 1080P/30fps
Diagonal 136˚ Viewing
