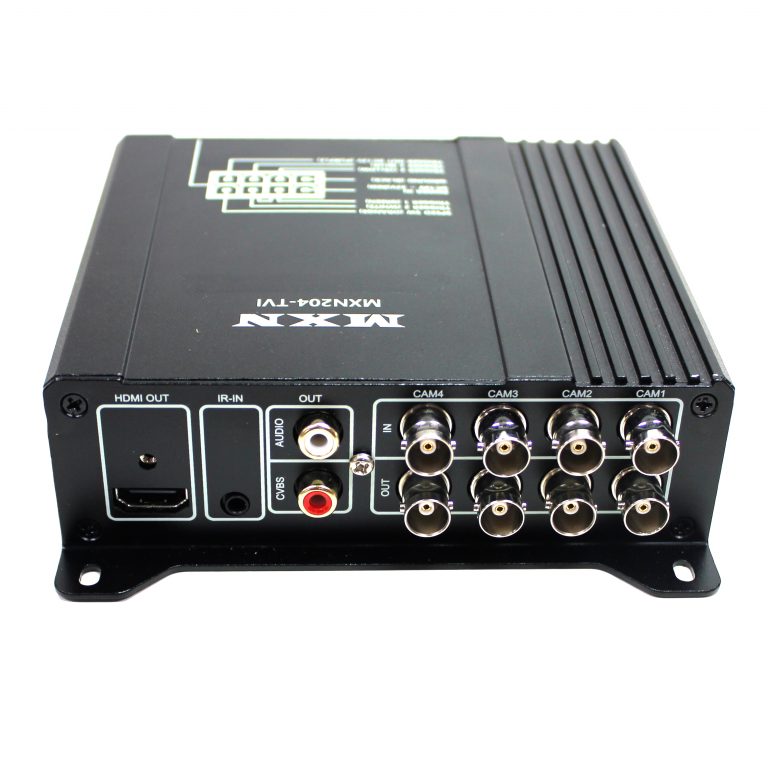

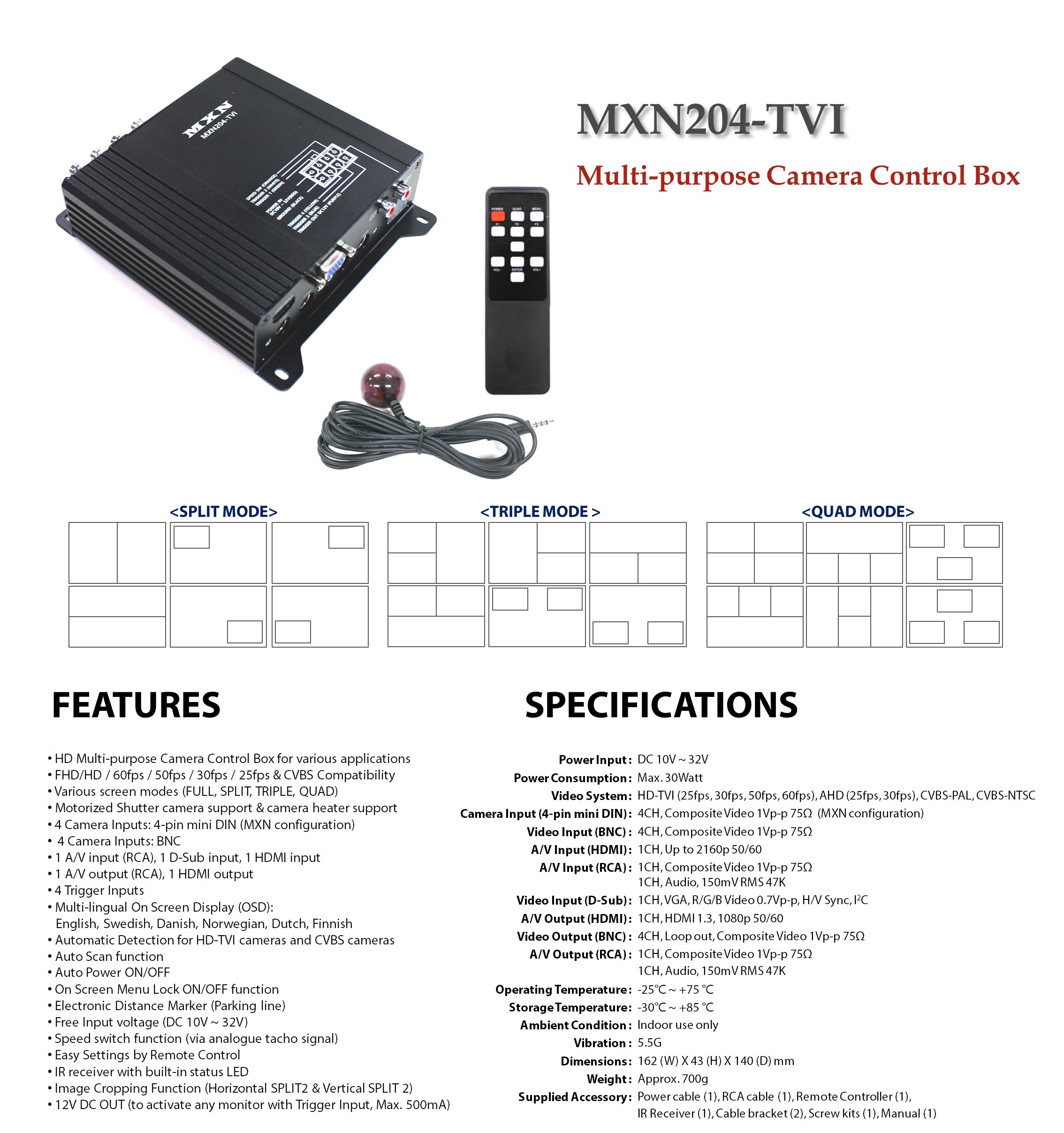

HD Multi purpose Camera Control Box(Shutter camera support & camera heater support, 4 Camera Inputs, Single, Split, Triple, Quad screen mode, Multi lingual On Screen Display)

•HD Multi purpose Camera Control Box for various applications
•FHD/HD / 60fps / 50fps / 30fps / 25fps & CVBS Compatibility
•Various screen modes (FULL, SPLIT, TRIPLE, QUAD)
•Shutter camera support & camera heater support

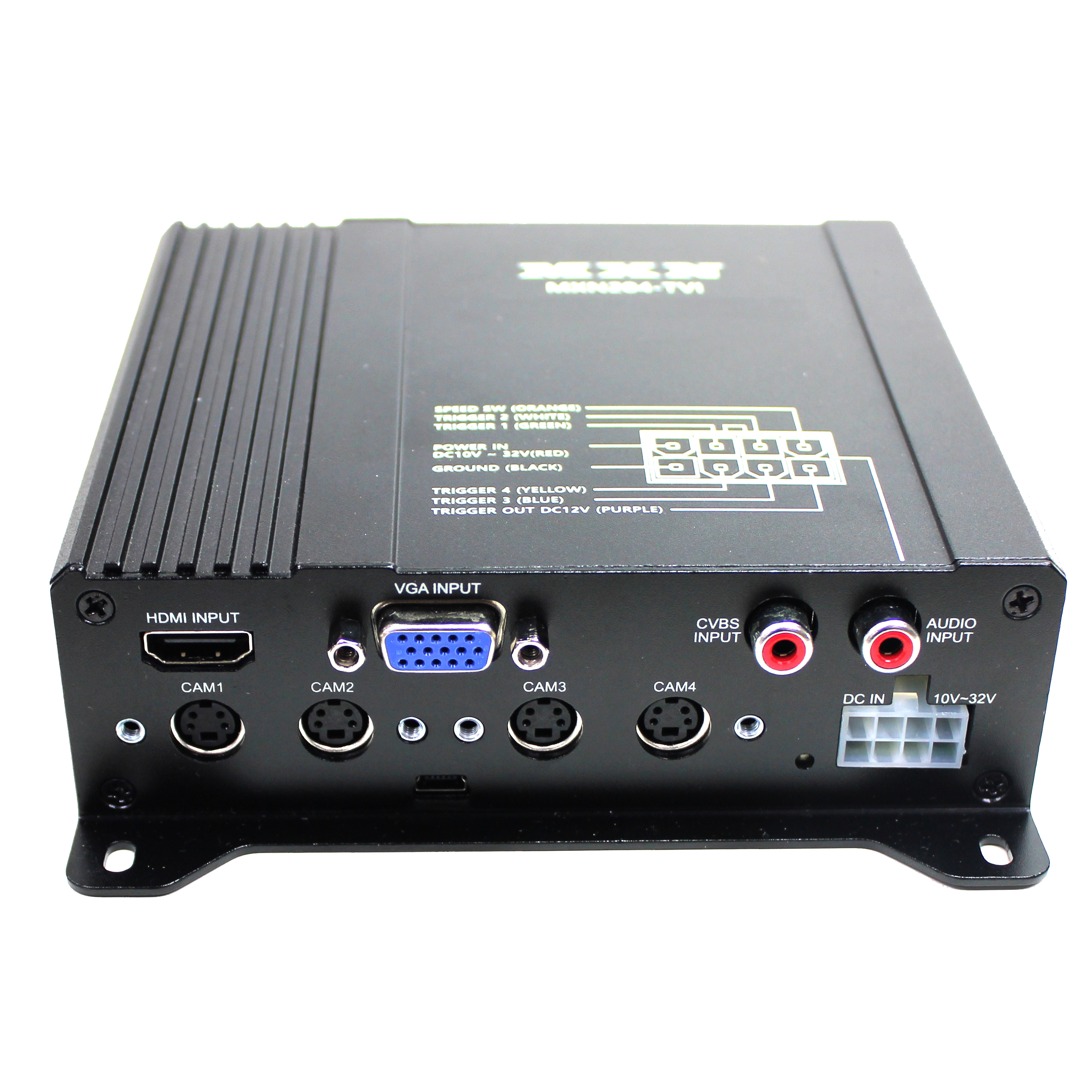

•4 Camera Inputs “4-pin min DIN” (MXN configuration) & 4 Camera Inputs (BNC)
•1 A/V input & 1 D Sub input & 1 HDMI input
•1 A/V output (RCA) & 1 HDMI output

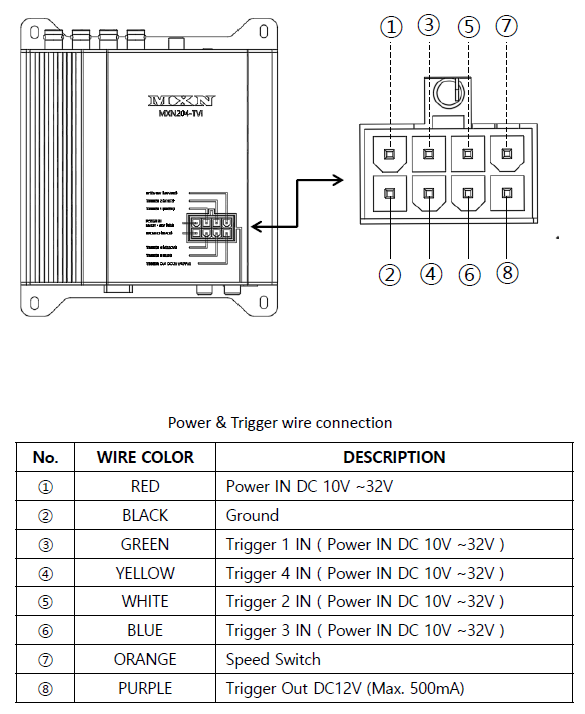

•4 Trigger Inputs
•Multi lingual On Screen Display (OSD):
English, Swedish, Danish, Norwegian, Dutch, Finnish
•Automatic Detection for HD TVI cameras and CVBS cameras
•Auto Scan function
•Auto Power ON/OFF
•On Screen Menu Lock ON/OFF function
•Electronic Distance Marker (Parking line)
•Free Input voltage (DC 10V ~ 32V)
•Speed switch function (via analogue tacho signal)
•Easy Setting by Remote Control
•IR receiver with built in status LED
•Image Cropping Function (Horizontal SPLIT2 & Vertical SPLIT
•12V DC OUT (to activate any monitor with Trigger Input)
